P2.5 P3 P4 P5 P6.6 P8 P10 LED Outdoor

Product Description

The W outdoor series complements the C series. While the C series primarily targets the US market, the W series is designed for other countries, offering reliable outdoor waterproof capabilities tailored to markets with varying purchasing power.

Key Features:

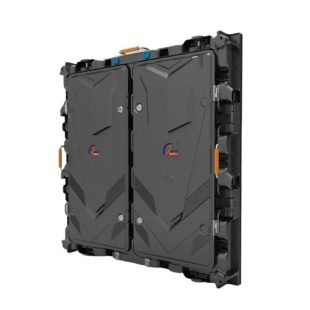

• Iron Cabinet: More affordable than aluminum, uses public mold design, faster delivery, available inventory for many P models, cost-effective solution.

• Maintenance: Requires a 60–80cm rear maintenance channel.

• Heat Dissipation: Since waterproofing is essential, heat dissipation is less effective; for hot climates like the Middle East, additional air conditioning is recommended.

• Brightness: 5000–6000 nits; brightness depends on equivalent chip size—the larger the chip, the higher the brightness.

• The C series uses National Star copper wire for 6000 nits, and National Star gold wire for 8000 nits brightness.

• Available in P5, P6, and P8.

• Power:

  • Outdoor maximum power: 900W/m²

  • Indoor maximum power: 600W/m²

  • Average power consumption: about one-third of maximum power.

• Note: In countries with high electricity costs (e.g., Germany), the common cathode solution can be recommended to reduce power consumption and heat generation.

• Common Cathode Power Supply: Reduces heat, differs in IC, power supply, and lamp bead structure—mainly uses a different power supply method.
