Led Cube – PD1.86

Categories: Creative Led, LED Cube, LED Display

Product description

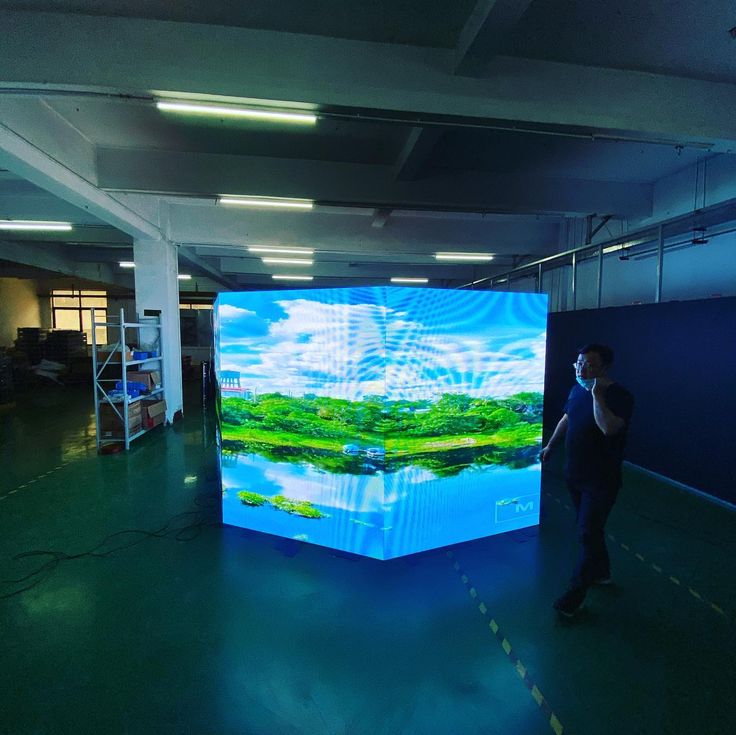

LED CUBE PD1.86 – A CREATIVE VISUAL SOLUTION IN MODERN FORM

LED Cube (also known as LED Box) is a cutting-edge and eye-catching display solution designed in a tall rectangular cabinet shape, delivering vivid content that captures attention from every angle.

At LED Cong Nghe, we provide high-resolution LED Cube displays with stable performance and versatile operation—whether used individually or in combination. Ideal for showrooms, exhibitions, cinemas, museums, retail stores, malls, and more.

✔️ KEY ADVANTAGES

✅ Modern and sleek design with a standard size of 640x1920mm (custom sizes available).
✅ Movable and portable — no need for additional structure; just plug & play.
✅ Flexible content control via WiFi or optional 4G connectivity.
✅ Can be used as a standalone unit or grouped, allowing for creative visual setups.
✅ Fast delivery and simple installation, no structural support required.

📌 TECHNICAL SPECIFICATIONS

Model No		PD1.8
Module	Pixel Pitch(mm)	1.86
	LED Type	SMD 1515
	Module Dimension(W*H)(mm)	320x 160
	Module Resolution(W*H)(Pixel)	172x 86
	Pixel Density (PixeVm²)	288906
	Scan Mode(S)	43
Cabinet	Cabinet Dimension (W*H)(mm)	640x 1920
	Cabinet Resolution (W*H)(Pixel)	344x 1032
	Cabinet Material	Iron
	Cabinet Weight (Kg)	75Kg
Display	Best Viewing Distance (m)	1.8
	Brightness (nits)	900
	Ingress Protection (Front /Rear)	IP31
	Viewing Angle	H:140°V:140°
	Color Temperature (K)	3200-9500K
	Gray Level	14bit
	Max Power Consumption (W/m²)	600
	Average Power Consumption (W/m²)	200
	Refresh Rate (Hz)	1920-3840
	Maintenance Method	Rear/Front Maintenance
	Operating Temperature	20℃-60℃
	Operating Humidity	10%-95%RH
	Input Voltage	AC110-220V±15%50-60Hz
	MTBF(Hours)	50000
	Life Time (Hours)	100000

🎯 APPLICATION SCENARIOS

🏢 Retail chains, shopping malls
🖼 Exhibitions, museums, galleries
🎥 Cinemas, entertainment areas
🏬 Showrooms, promotional spaces
🧳 Pop-up events, trade shows, brand activations

🔧 USER-FRIENDLY OPERATION – QUICK DEPLOYMENT

With its minimalist and modern design, the LED Cube is easy to set up and operate. Content can be updated via smartphone or tablet. Supports WiFi and 4G remote control, allowing for online content management anytime, anywhere.
