LED CUBE PD3 – A CREATIVE VISUAL SOLUTION IN MODERN FORM

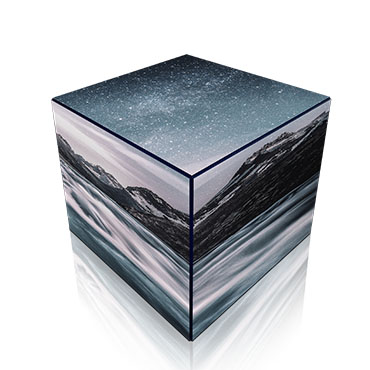

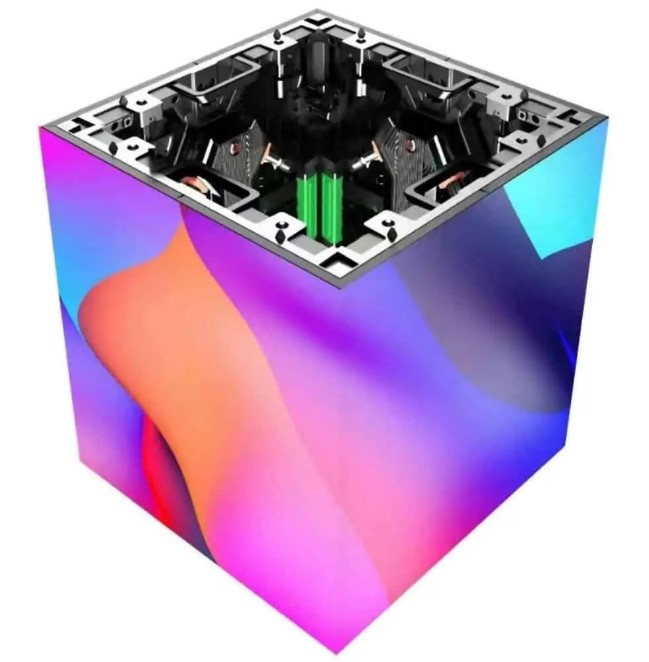

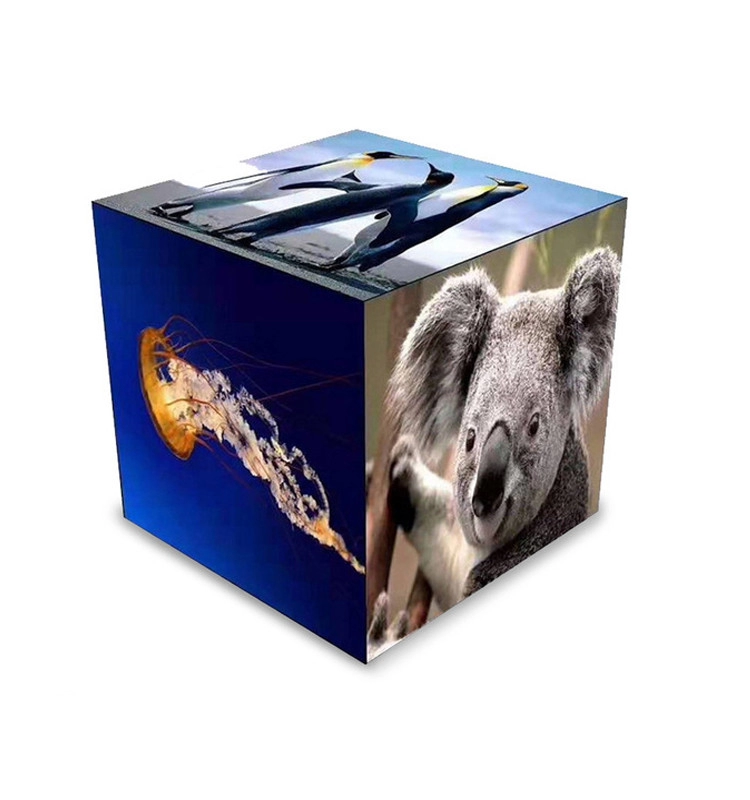

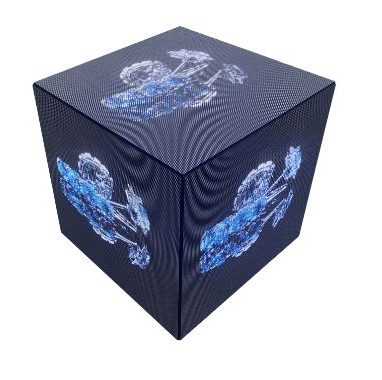

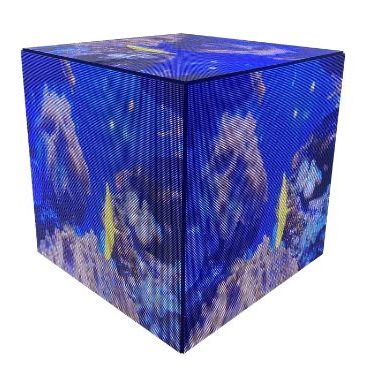

LED Cube (also known as LED Box) is a cutting-edge and eye-catching display solution designed in a tall rectangular cabinet shape, delivering vivid content that captures attention from every angle.

At LED Cong Nghe, we provide high-resolution LED Cube displays with stable performance and versatile operation—whether used individually or in combination. Ideal for showrooms, exhibitions, cinemas, museums, retail stores, malls, and more.

✔️ KEY ADVANTAGES

✅ Modern and sleek design with a standard size of 640x1920mm (custom sizes available).

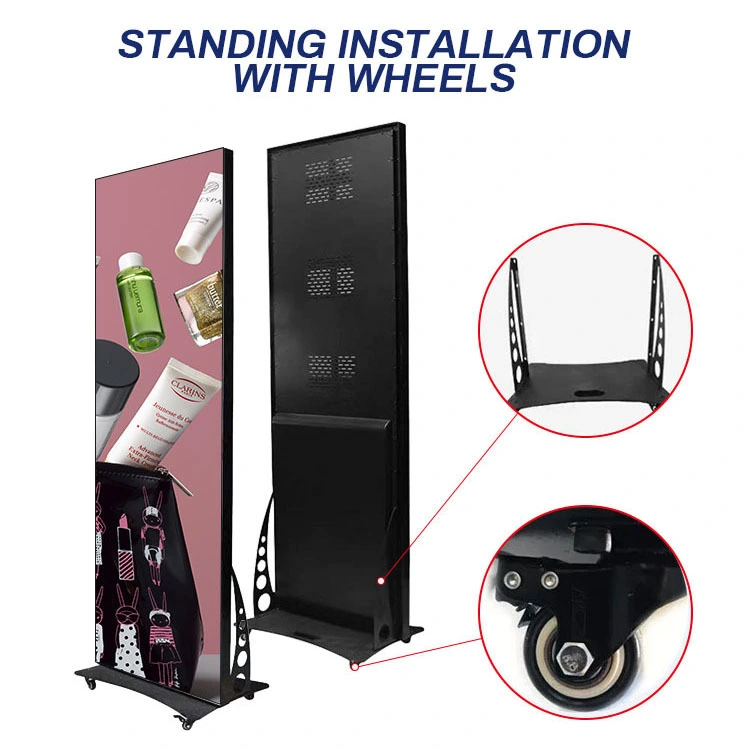

✅ Movable and portable — no need for additional structure; just plug & play.
✅ Flexible content control via WiFi or optional 4G connectivity.

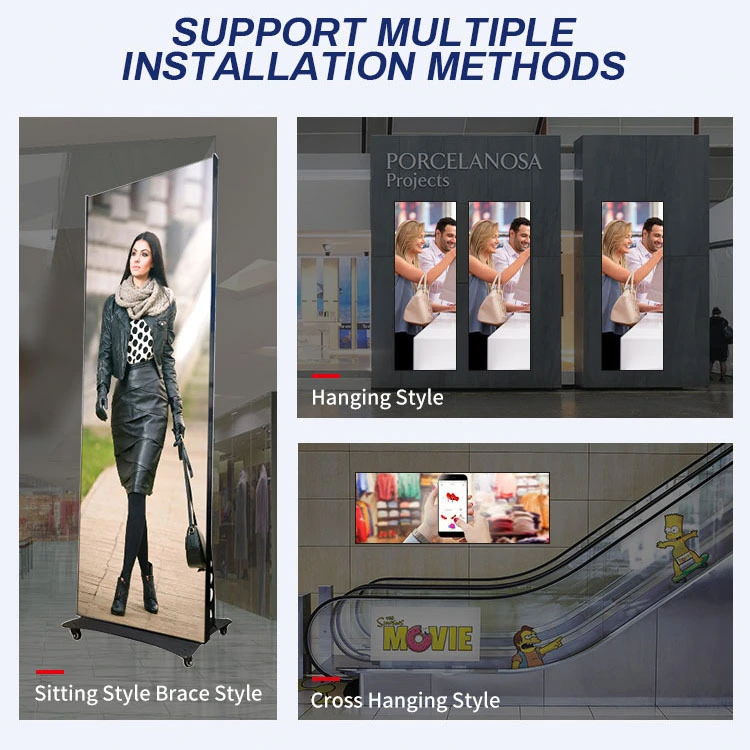

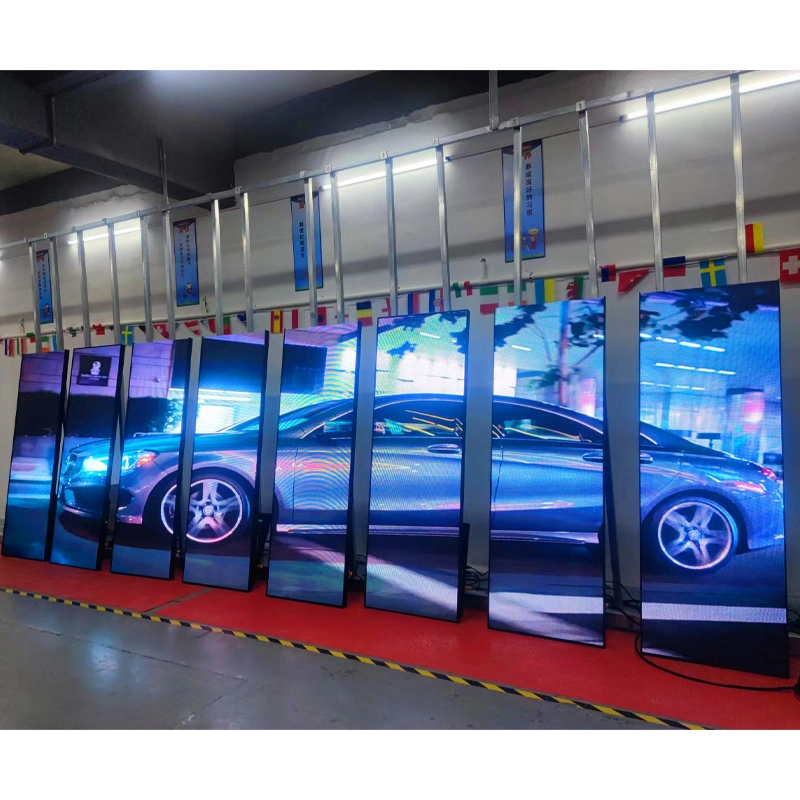

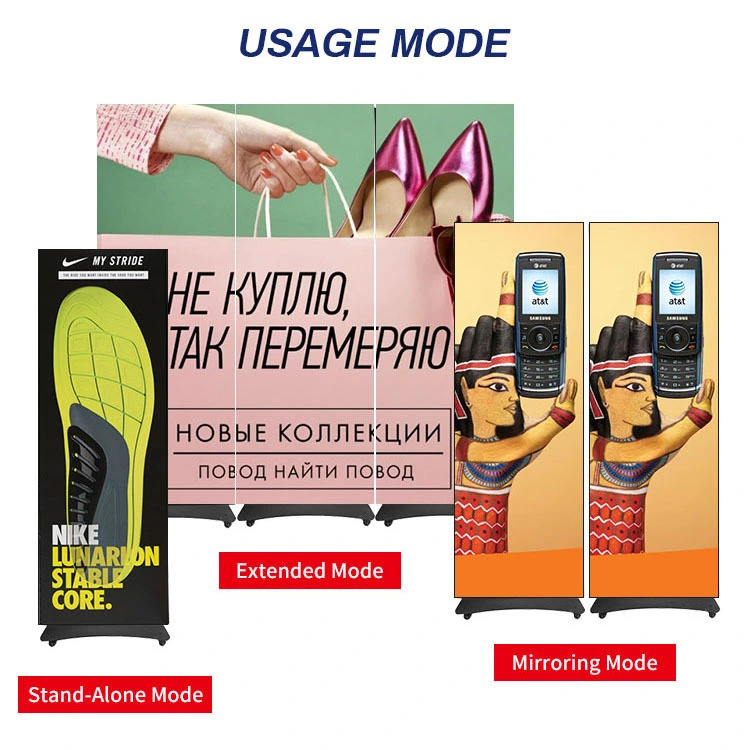

✅ Can be used as a standalone unit or grouped, allowing for creative visual setups.
✅ Fast delivery and simple installation, no structural support required.

📌 TECHNICAL SPECIFICATIONS

Model No		PD3
Module	Pixel Pitch(mm)	3.076
	LED Type	SMD 2121
	Module Dimension(W*H)(mm)	320x 160
	Module Resolution(W*H)(Pixel)	104x 52
	Pixel Density (PixeVm²)	105625
	Scan Mode(S)	24
Cabinet	Cabinet Dimension (W*H)(mm)	640x 1920
	Cabinet Resolution (W*H)(Pixel)	208x 624
	Cabinet Material	Iron
	Cabinet Weight (Kg)	75Kg
Display	Best Viewing Distance (m)	3
	Brightness (nits)	900
	Ingress Protection (Front /Rear)	IP31
	Viewing Angle	H:140°V:140°
	Color Temperature (K)	3200-9500K
	Gray Level	14bit
	Max Power Consumption (W/m²)	600
	Average Power Consumption (W/m²)	200
	Refresh Rate (Hz)	1920-3840
	Maintenance Method	Rear/Front Maintenance
	Operating Temperature	20℃-60℃
	Operating Humidity	10%-95%RH
	Input Voltage	AC110-220V±15%50-60Hz
	MTBF(Hours)	50000
	Life Time (Hours)	100000

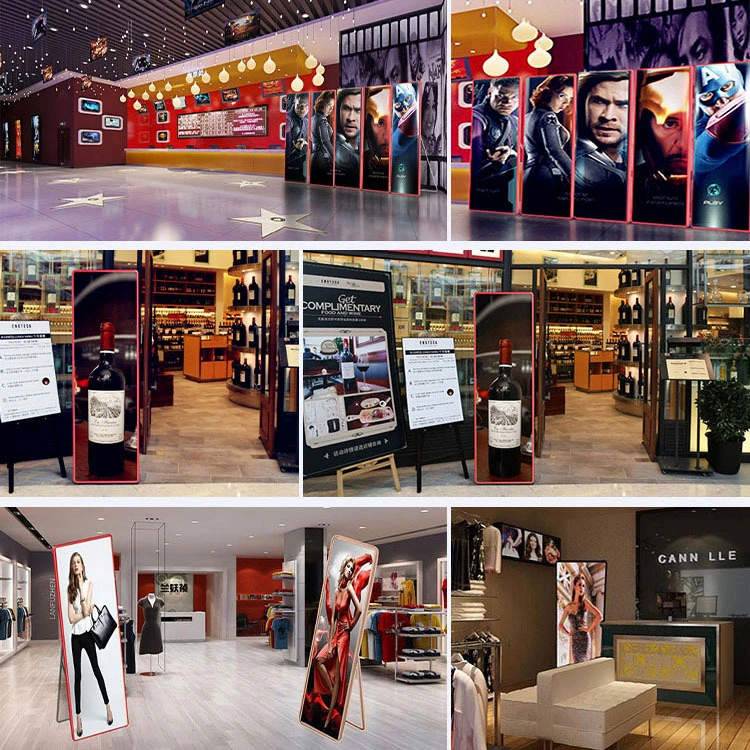

🎯 APPLICATION SCENARIOS

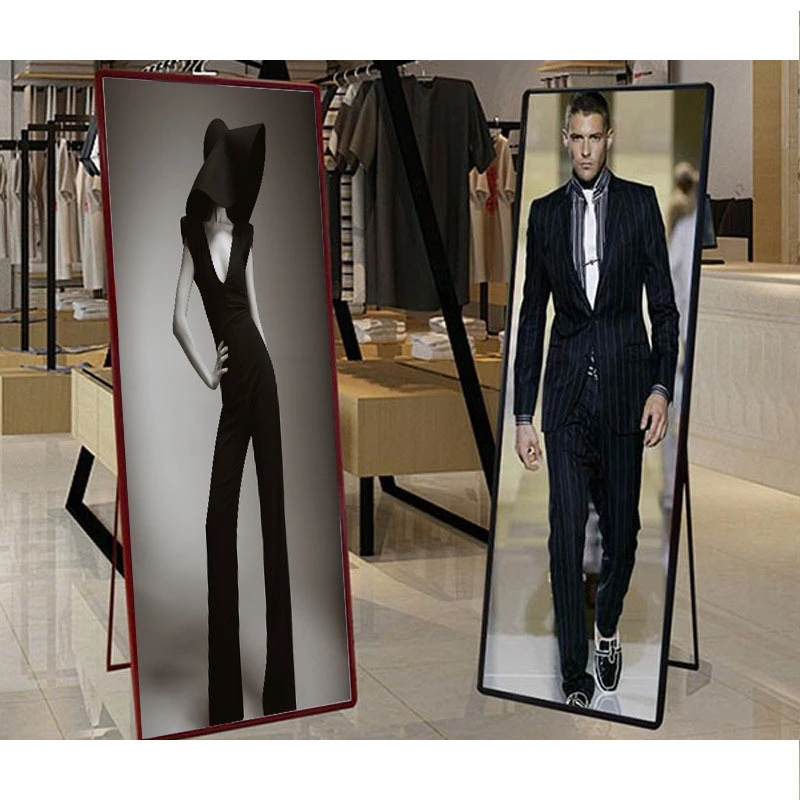

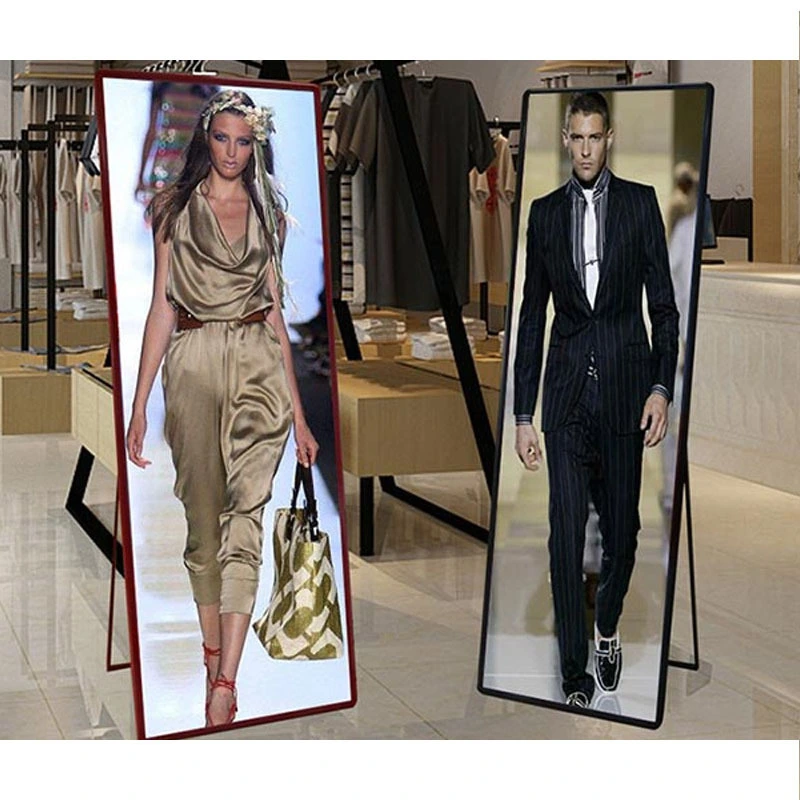

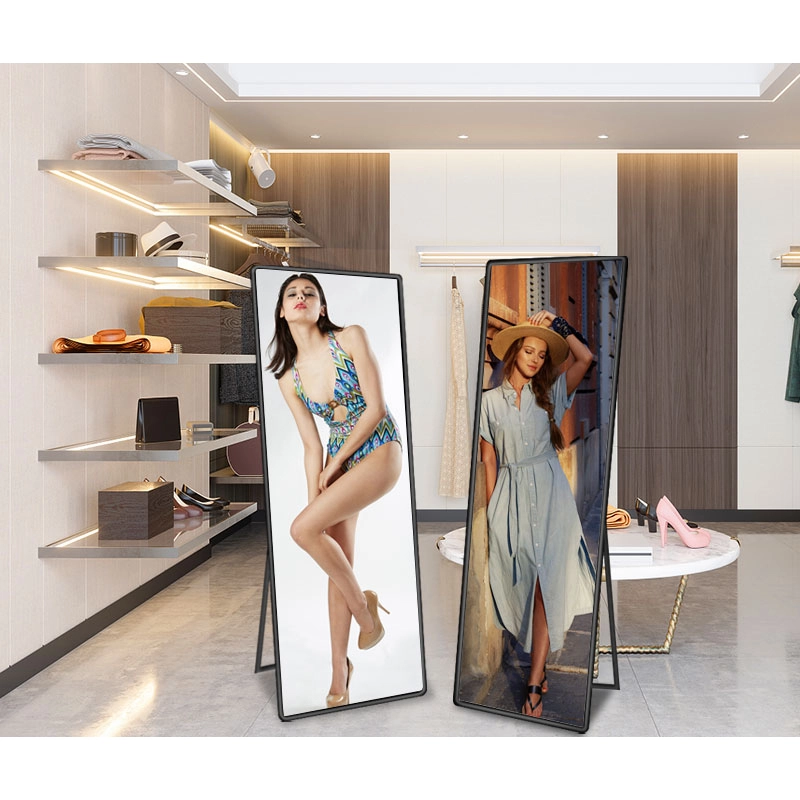

🏢 Retail chains, shopping malls
🖼 Exhibitions, museums, galleries
🎥 Cinemas, entertainment areas
🏬 Showrooms, promotional spaces
🧳 Pop-up events, trade shows, brand activations

🔧 USER-FRIENDLY OPERATION – QUICK DEPLOYMENT

With its minimalist and modern design, the LED Cube is easy to set up and operate. Content can be updated via smartphone or tablet. Supports WiFi and 4G remote control, allowing for online content management anytime, anywhere.

📞 Contact LED Cong Nghe today to receive a quote and personalized consultation for your project!
